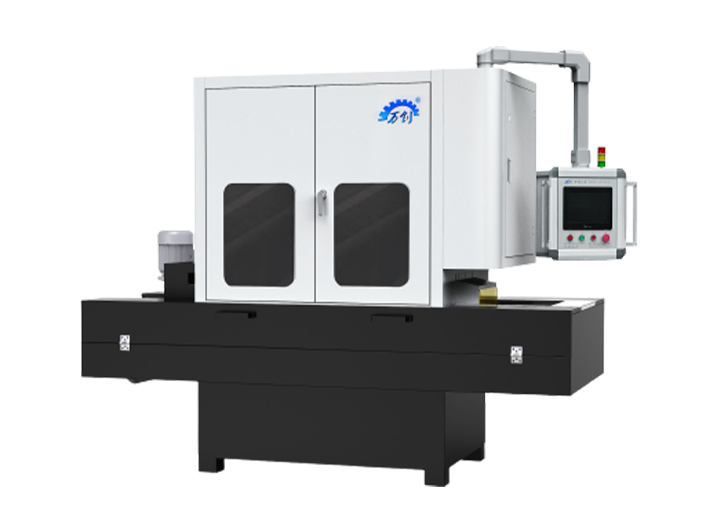

Gyratory type automatic turning double-sided deburring machine

Gyratory type automatic turning double-sided deburring machine

VSD300II-W2SR

Application Scope:

Metal stamping, machining, grinding machine processing, powder metallurgy and other workpieces double-sided polishing deburring, chamfering, rust removal, removal of oxidation skin, cleaning and drying, rust prevention, etc.


Service Hotline:

400-8282-811

Enquire Now


Parameters Principle Diagram Applications Video
Main Function Features

1. The whole line is completed in turn with automatic loading, double-sided precision polishing and deburring, cleaning and drying to prevent rust. Automatic receiving and all other processes. Each minute can process 60--100 pieces of various valve plates, friction plates, thrusters, spacers and other workpieces; assembly line through the operation, modular combination, customers according to the needs of the whole purchase or optional related modules.


2. The whole set of equipment is the world's first automatic double-sided polishing, cleaning and drying production line special equipment, Wanchuang has completely independent intellectual property rights, the whole authorized invention patents and software copyright certification;


3. The excellent structure and function of the equipment ensure the super durability, safety and stability of the equipment; the equipment is energy efficient, convenient in operation and simple in maintenance, and the technical functions are far ahead of similar equipment at home and abroad.


The equipment is developed and manufactured by Wanchuang independently, and Wanchuang has completely independent intellectual property rights, the whole machine has been authorized to patent, and imitation is prohibited.


Product Parameters


Scope of Application: Suitable for processing metal products of 40*100mm in length and width or diameter, finishing the polishing and deburring process of front and back side of the parts in one time;


Equipment Configuration: Front side polishing (single or multi-station brush disc combination) + automatic flip side conveying + back side polishing (single or multi-station brush disc combination), can be connected with cleaning and drying, increase automatic feeding and receiving mechanism shape or production line;


Grinding Method: Vacuum adsorption dry grinding. Equipped with vacuum dust collection;


Control System: Man-machine interface control, -key to start the whole set of equipment operation; 5) size: total length about 4.5-6M * width 1.2m * height 2.2m; 6) total power: 15-25KW.

Main Function Features
  • 加工原理.jpg

    Fine blanking parts deburring machine schematic

  • 双砂带+双双刷盘.jpg

    Double abrasive belt + double double brush disc

  • 三刷盘.jpg

    Triple Brush Plate

  • 双刷盘.jpg

    Double brush plate

Processing Cases





Customer Cases
