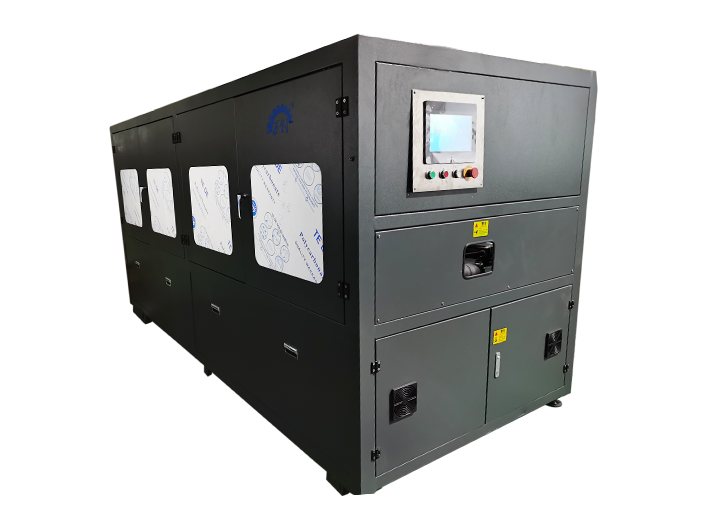

江苏VSMT100W-W6S Type (multi-surface grinding)

江苏VSMT100W-W6S Type (multi-surface grinding)

Application Scope:

Metal profile sawing workpiece deburring process, once finished both ends of the workpiece sawing surface deburring. It is widely used in the deburring process of new energy battery partition, sawing spline, sawing radiator and other workpieces.

Service Hotline:

400-8282-811

Enquire Now


Parameters Principle Diagram Applications Video
Main Function Features

1. Polishing wheel can be processed to imitate the shape, can polish and polish the surface of irregular shaped pipe such as arc, round and semi-round.


2. The equipment supports customization; customize other multi-station combination (or different consumables polishing wheel combination) to improve polishing and drawing quality and processing efficiency; customize other processing width or thickness machines.


3. The equipment is Wanchuang's original technology, which can polish all surfaces of pipe profiles (including shaped surfaces) at one time, with a fully enclosed structure and a dust-absorbing mechanism, which is safe and environmentally friendly, energy-saving and efficient; servo lifting and positioning of grinding wheels, automatic positioning of product thickness and width specifications, automatic compensation of consumables loss, PLC programming control, touch screen human-machine interface operation, and one-key start-stop.


4. The equipment is tailor-made and independently developed by Wanchuang according to the customer's needs, and Wanchuang has completely independent intellectual property rights; the equipment has been authorized the overall invention patent and software copyright certification, and the user can apply for high-tech product policy subsidies for purchase, generally between 10-30%.


5. Generally, VSDE100-W4S is used for grinding small workpieces with straight monsters, and VSDE100-PW4S is used for grinding larger workpieces with stubborn burrs; the equipment is produced in a straight line with an open structure for import and export, and can be connected to automatic deburring production lines and cleaning and drying equipment with Wanchuang's automatic loading and unloading equipment.


6. The excellent structure and function of the equipment ensure the super durability, safety and stability of the equipment; the equipment is energy efficient, convenient in operation and simple in maintenance.


Product Parameters

Applicable Scope:Surface rust removal and oxidation removal, polishing and drawing processes for pipes, bars and profiles;

VSMT100W-W6S type (multi-surface grinding):Eight-station combination. Two sets of polishing wheels are distributed on the upper, lower and left side of the conveying drum to polish four sides of the workpiece at the same time. It can polish and draw, de-oxidize and deburr the workpiece on each end face; spoked cylinder conveying, conveying speed 0-6m/min frequency adjustable. Total power 26kw, total weight 2.5T, length, width and height 3.5*1.2*1.8m; maximum processing width or diameter 100mm, length unlimited, other specifications can be customized.

Processing RangeDiameter or length and width 10*100mm optional, length 50*500mm optional, other processing specifications can be customized equipment

Conveying MethodBelt conveying 0-8m/min(adjustable frequency)

Grinding Head ConfigurationCustomized single-station brush plate and multi-station brush plate combinations are available. Customized according to customer's process requirements. Dry grinding method. Equipped with dust extractor for dust collection

Control SystemPLC programming, human-machine interface control; power supply voltage: three-phase five-wire, 380V, 50HZ; servo automatic feeding and positioning, automatic intelligent compensation of consumables loss
