万向砂丝轮去毛刺倒圆角

万向砂丝轮去毛刺倒圆角

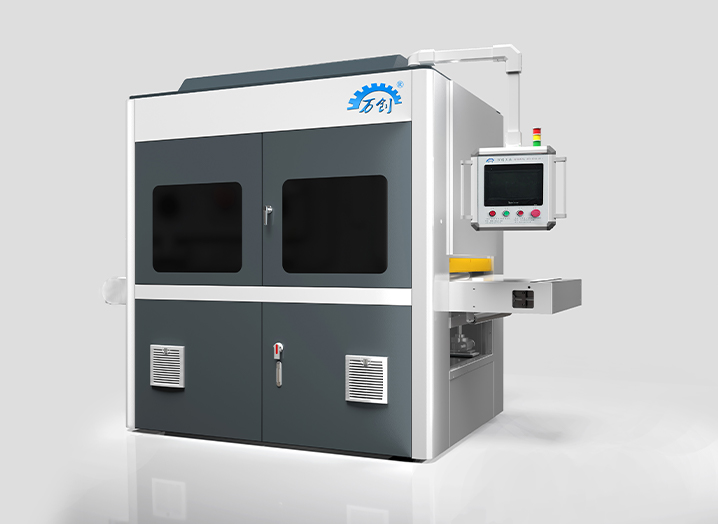

VSA860

Application Scope:

Metal non-metal sheet laser (flame) cutting, stamping, cutting and other workpiece pieces of all-round dead-end deburring, de-slagging, chamfering; metal plate surface grinding and drawing, rust removal to remove oxidation skin and other technological processing.

Service Hotline:

400-8282-811

Enquire Now


Parameters Principle Diagram Applications Video
Main Function Features

1. Single grinding wheel structure machine: adjacent grinding wheel forward and reverse high-speed rotation, the whole combination of low-speed public rotation and left and right scurry, through grinding, brushing, sweeping, thwarting and other actions, all-round removal of workpiece residual burrs and chamfering. The surface roughness Ra0.5-2.5, R angle 0.2-1.5, cutting volume 1-20um, the precision is adjustable and controllable.


2. Combined version of the equipment consists of abrasive belt + abrasive wire wheel combination structure. The abrasive belt rotates at high speed and scurries quickly to grind the surface of the workpiece to remove the large burrs and slag from the flanged edges, and then remove the edges and round the corners through the grinding head of the grinding wheel.


3. The grinding wheel head is made of soft material, which can be inserted into the groove hole of the workpiece to remove the inward burr and not affect the surface accuracy of the workpiece.


The equipment is developed and manufactured by Wanchuang independently, and Wanchuang has full independent intellectual property rights, and the whole machine has been authorized to patent, so imitation is prohibited.


Product Parameters

Scope Of Application: Metal non-metal sheet laser (flame) cutting, stamping, cutting and other workpiece pieces of all-around dead-end deburring, de-slagging, chamfering; metal plate surface grinding and drawing, rust removal to oxidation skin and other process processing;

Equipment Specifications And Processing Range: VSA1360 type processing width ≤ 1350mm; VSA1060 type processing width ≤ 1050mm; VSA860 type processing width ≤ 850mm; VSA300V-2SP processing width ≤ 200mm; minimum processing length and width or diameter 30*50mm; processing thickness 0.5-50mm; conveying speed 0-5m/ min min variable frequency adjustable;

Grinding Head Speed: 500-180OR/min, control system: human-machine interface, PLC programming control, one key to start and stop the equipment; power supply voltage: three-phase five-wire, 380V, 50HZ;

Rated Power: 15-35KW; Total weight (approx.): 1-6T; Appearance size (length, width and height): 2500-3500mm*1200-1800mm*1500-2300mm

Control System: Human-machine interface, PLC programming control, one key to start and stop the equipment; power supply voltage: three-phase five-wire, 380V, 50HZ;

Equipment Support Customization: Can customize the sanding belt + sanding wheel combination machine, can customize the vacuum adsorption or strong magnetic adsorption, customize the series of cylinder conveying.

Main Function Features
  • 砂带+四刷辊.jpg

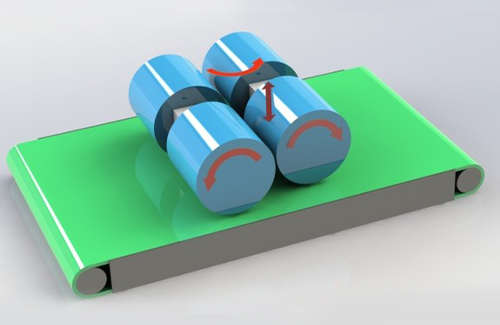

    Single-station 4-axis grinding wheel structure principle diagram

  • 四刷辊.jpg

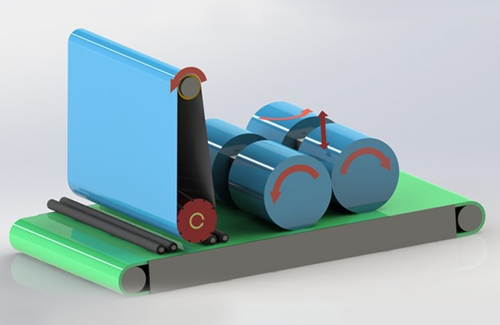

    Sanding belt + 4 axis grinding wheel combination structure principle diagram

Processing Cases










Customer Cases
